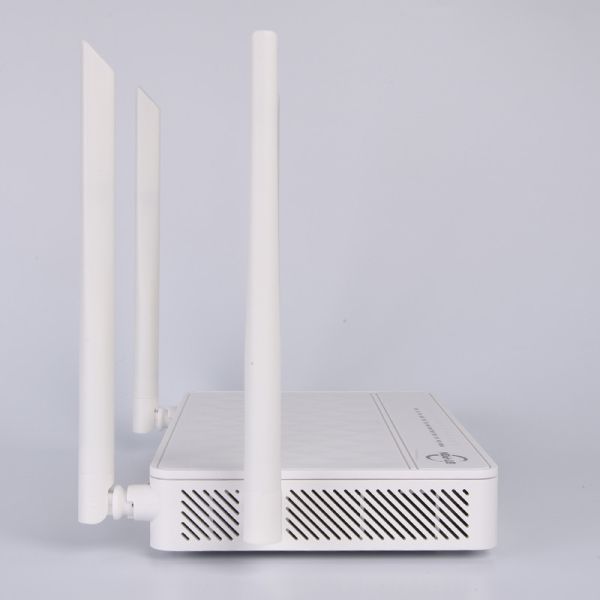

Dual Frequency 4GE 2POTS XPON ONU Fiber Optic Terminal Equipment

Shenzhen Baitong Putian Technology Co., Ltd.

Dual Frequency 4GE 2POTS XPON ONU Fiber Optic Terminal Equipment

  • 1
  • 2
  • 3

Brand Name : BT-PON

Model Number : BT-761XR

Certification : CE

Place of Origin : Guangdong

MOQ : 100

Price : Negotiation

Supply Ability : 10000 Unit/Units per Month

Type : FTTx Solutions

Power adapter input : 100~240 V AC, 50/60 Hz

Ports : 4GE+2VOIP+2.4G/5.8G WLAN+1USB

Power supply : 12V DC,1.5A

Pon : XPON

Use : FTTH

Gross weight : 300g

Size : 205mm (L) *140mm (W) *30mm (H)

Contact Now

XPON ONU FIBER OPTIC MODEM TERMINAL EQUIPMENT 5G DUAL-FREQUENCY 4GE + 4WIFI + 1USB +2POTS

Product Description:

4GE+AC WIFI ONU (GPON) terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well.

It can integrates wireless function meeting 802.11 a/b/g/n/ac technical standards, and supports 2.4GHz/5GHz dual-band wireless signal. It has strong penetrating power and wide coverage, and provides users with more efficient data transmission security.

Features:

  • Bi-directional FEC
  • Support IPv4, IPv6 and IPv4/IPv6
  • Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
  • Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
  • Qos supports PQ, WRR, and CAR queue scheduling
  • Support EPON/GPON mode and switch mode automatically
  • GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
  • GPON:8 T-CONTs,32 GEM Ports
  • Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
  • Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
  • Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
  • Support PPPoE/ Static IP/ DHCP
  • Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings
  • Support DDSN, ALG, DMZ and UPNP
  • Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909

Product Parameter:

Hardware Specifications
Size(L*W*H) 205mm (L) *140mm (W) *30mm (H)
Optical signal access 1*GPON/EPON
User interface 4GE+2VOIP+2.4G/5.8G WLAN+1USB
Indicator light POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,TEL1,TEL2,USB,2.4G,5G,WPS,
Button Power switch Button, Reset Button, WLAN Button, WPS Button
Weight 300g
Power adapter input 100V~240V AC,50Hz~60Hz
PowerSupply requirement 12V DC,1.5A
Power consumption <10w
Working temperature -10°C ~ +45°C
Environment humidity 5% ~ 95% (Non-condensing)
PON Interface
Module type SC/UPC
Working wavelength PON:up 1310nm,down 1490nm
TX Optical power value 0.5~4dBm
RX Optical power value -27dBm
Transmission distance 0~20km
Transmission rate

GPON:Up 1.244Gbps;down 2.488Gbps

EPON:Up 1.244Gbps;down 1.244Gbps

Ethernet interface
Interface type 4* RJ45
Interface parameters 4*10/100/1000Mbps auto adaptive Ethernet interfaces
Wireless
Working mode IEEE 802.11 b/g/n/AC
Antenna pattern External 2*2T2R External antenna
Antenna gain 5dBi
Wireless bandwidth Support 20MHz/40MHz/80MHz
Interface rate

2.4G WLAN:Maximum rate 300Mbps

5.8G WLAN:Maximum rate 866Mbps

SSID Up to 4 SSID broadcasts are supported
POTS interface
Interface type 2* RJ11
Voice agreement SIP
Codecs G.711/G.723/G.726/G.729
Integrated circuit protocol Gr-909 protocol is applicable

FAQ:

1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7 workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
